JK: Alpine Long Arm Bracket Kit (3-6" Lift) - Brackets Only

These CAD-designed TeraFlex JK: Alpine Long Arm Brackets are engineered for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.

On higher lifts, Alpine Long Arm Brackets reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms. Can be added to an existing suspension lift. Can be added to an existing suspension lift.

Must be used with adjustable Long Control Arms (Alpine IR; # 1315000; Alpine: # 1315000) to optimize caster angle and tune anti-squat geometry for proper suspension alignment on JK Wrangler/Unlimited models with 3-6" lifts.

Fits:

• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)

• 3-6" Lift

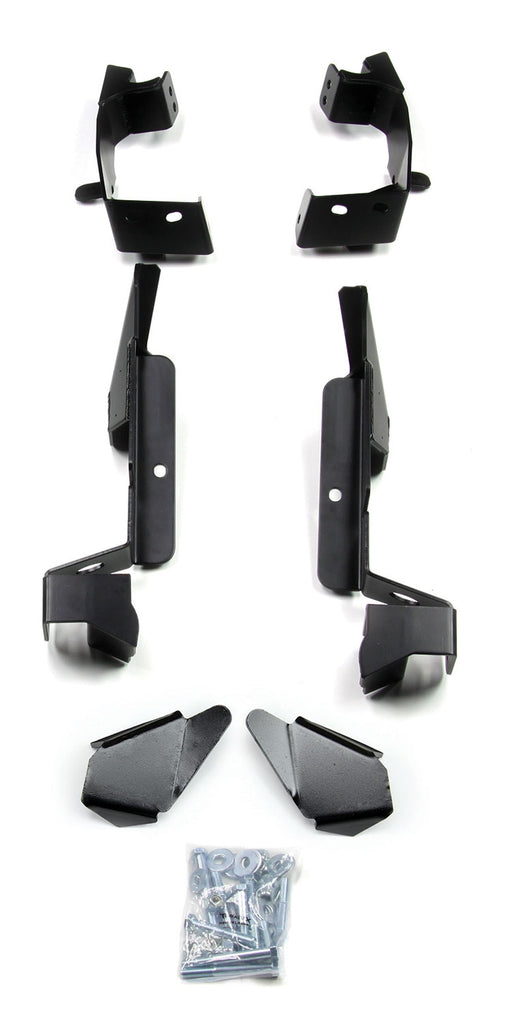

Includes:

Alpine Long Arm Brackets:
• Front Brackets - pair
• Rear Brackets - pair
• Rear Gussets - pair
• All necessary hardware

Features & Benefits:

• On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the Alpine [IR] Long Control Arms (NOT INCLUDED)
• Bolt-on Alpine Long Arm Brackets are gusseted and reinforced for superior strength w/ reduce NVH compared to other long arm kits
• Premium black e-dipped coating provides superior durability and corrosion resistance
• TeraFlex Lifetime Warranty against defects

Note(s):

• Requires cutting and welding.
• Requires cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.
• Alpine Long Arm Brackets (# 1957000) MUST be used w/ Alpine IR Long Control Arms (# 1415612) or Alpine Long Control Arms (# 1315000) - NOT INCLUDED.

Install Time: 12 Hours

Configurations:

Alpine IR Long Control Arms:

• 8-Arm & Bracket Kit (# 1315011)
• 8-Arm Kit (# 1415612)
• Alpine Long Arm Bracket Kit (# 1957000)

• Front Upper (# 1315570) - pair
• Front Lower (# 1315580) - pair
• Rear Upper (# 1315590) - pair
• Rear Lower (# 1315600) - pair

• IR Bushing Replacement Kit - 8 Long Arms (# 1952701)

Alpine Long Control Arms:

• 8-Arm & Bracket Kit (# 1315010)
• 8-Arm Kit (# 1315000)
• Alpine Long Arm Bracket Kit (# 1957000)

• Front Upper (# 1315520) - pair
• Driver Front Upper (# 1131521)
• Passenger Front Upper (# 1131531)
• Replacement Bushings (Axle End: # 611014; Frame End: # 611013)

• Front Lower (# 1315500) - pair
• Driver Front Lower (# 1131501)
• Passenger Front Lower (# 1131511)
• Replacement Bushings (Both Ends: # 611011)

• Rear Upper (# 1315560) - pair
• Driver Rear Upper (# 1131561)
• Passenger Rear Upper (# 1131571)
• Replacement Bushings (Both Ends: # 611012)

• Rear Lower (# 1315540) - pair
• Driver Rear Lower (# 1131541)
• Passenger Rear Front Lower (# 1131551)
• Replacement Bushings (Both Ends: # 611011)
